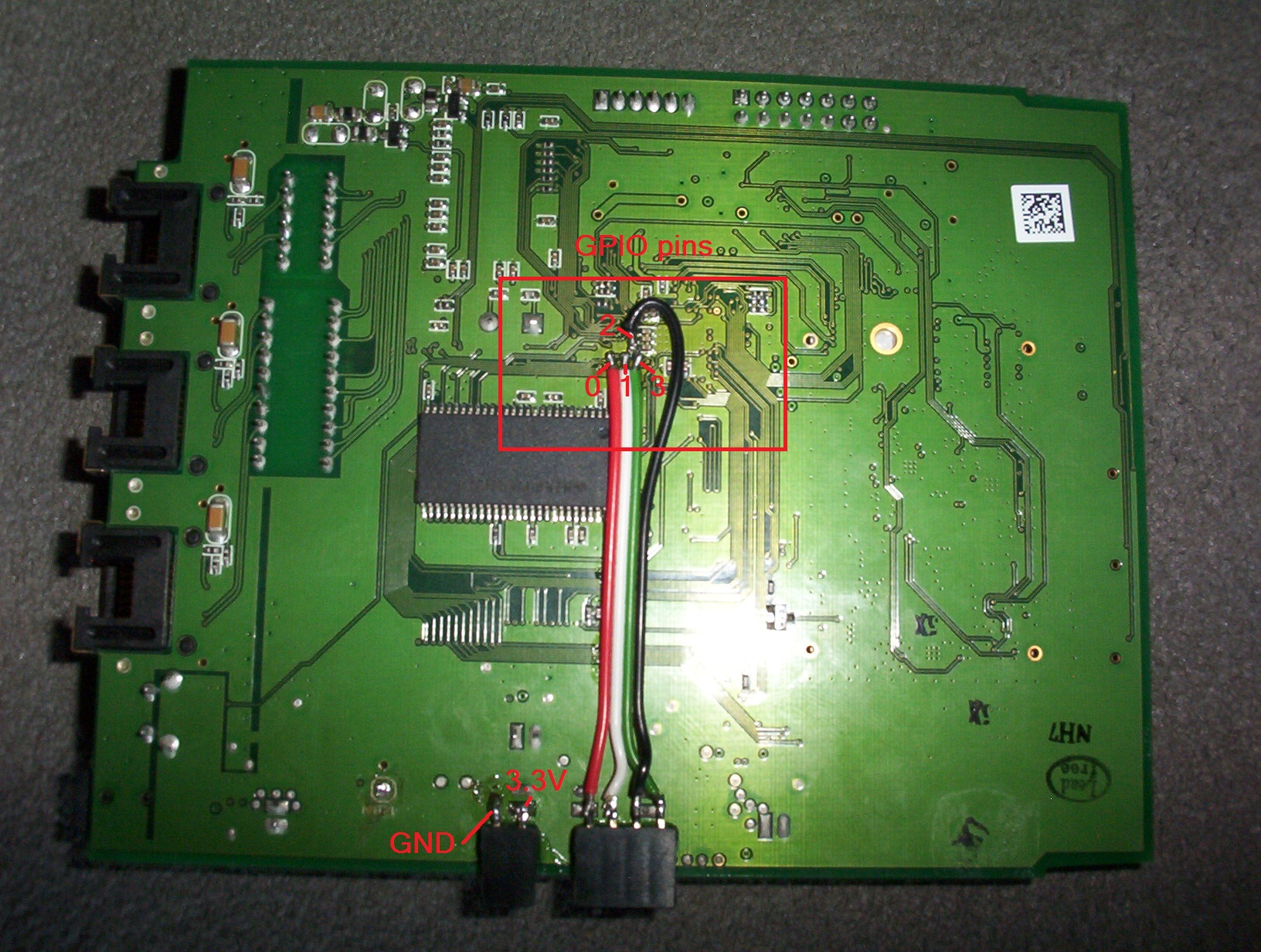

rdaa81_v1_mmc_over_gpio_mod_01.jpg2012-Jun-01 11:53:51703.5Kimage/jpeg

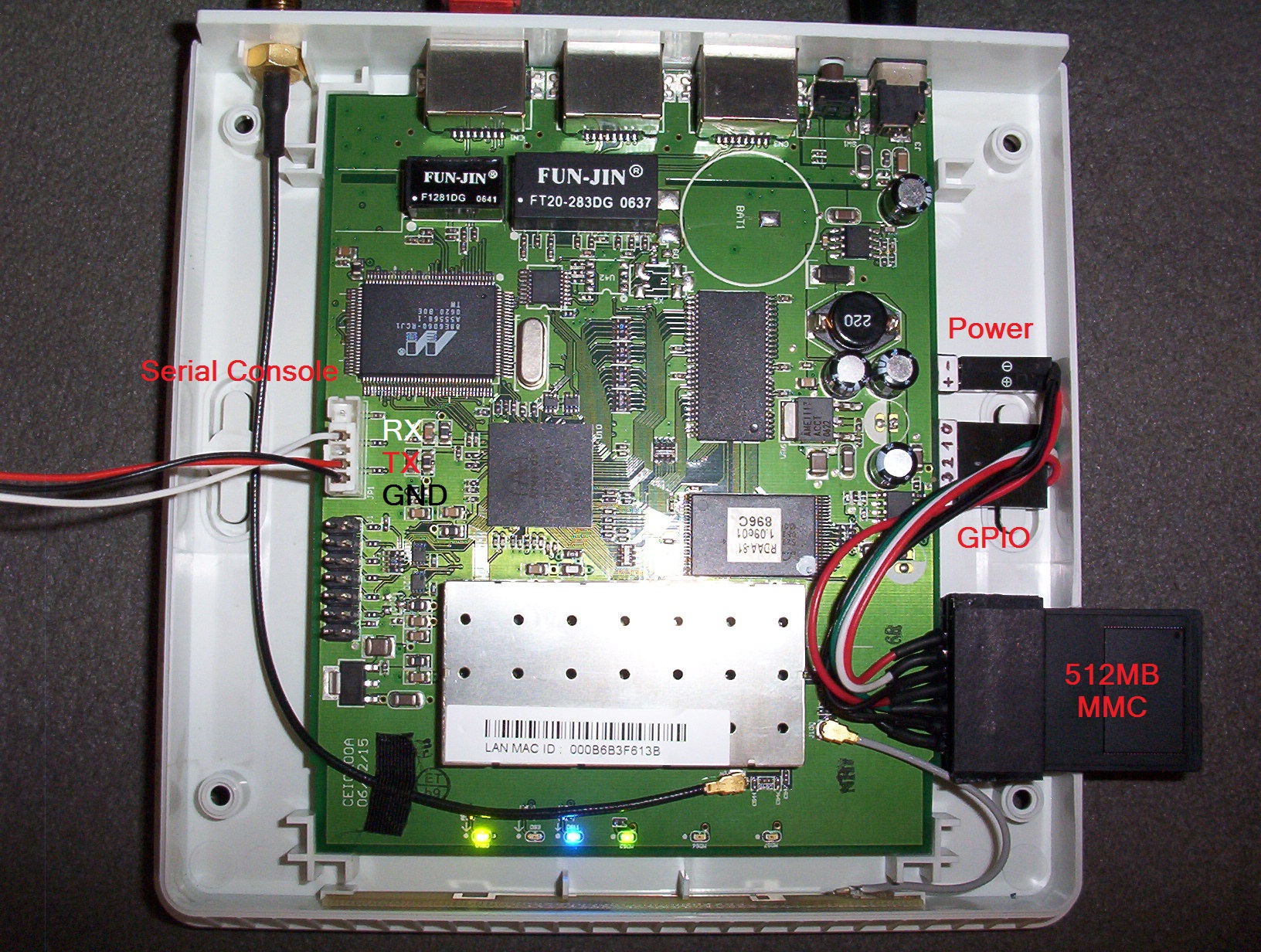

rdaa81_v1_mmc_over_gpio_mod_02.jpg2012-Jun-01 11:58:55826.9Kimage/jpeg

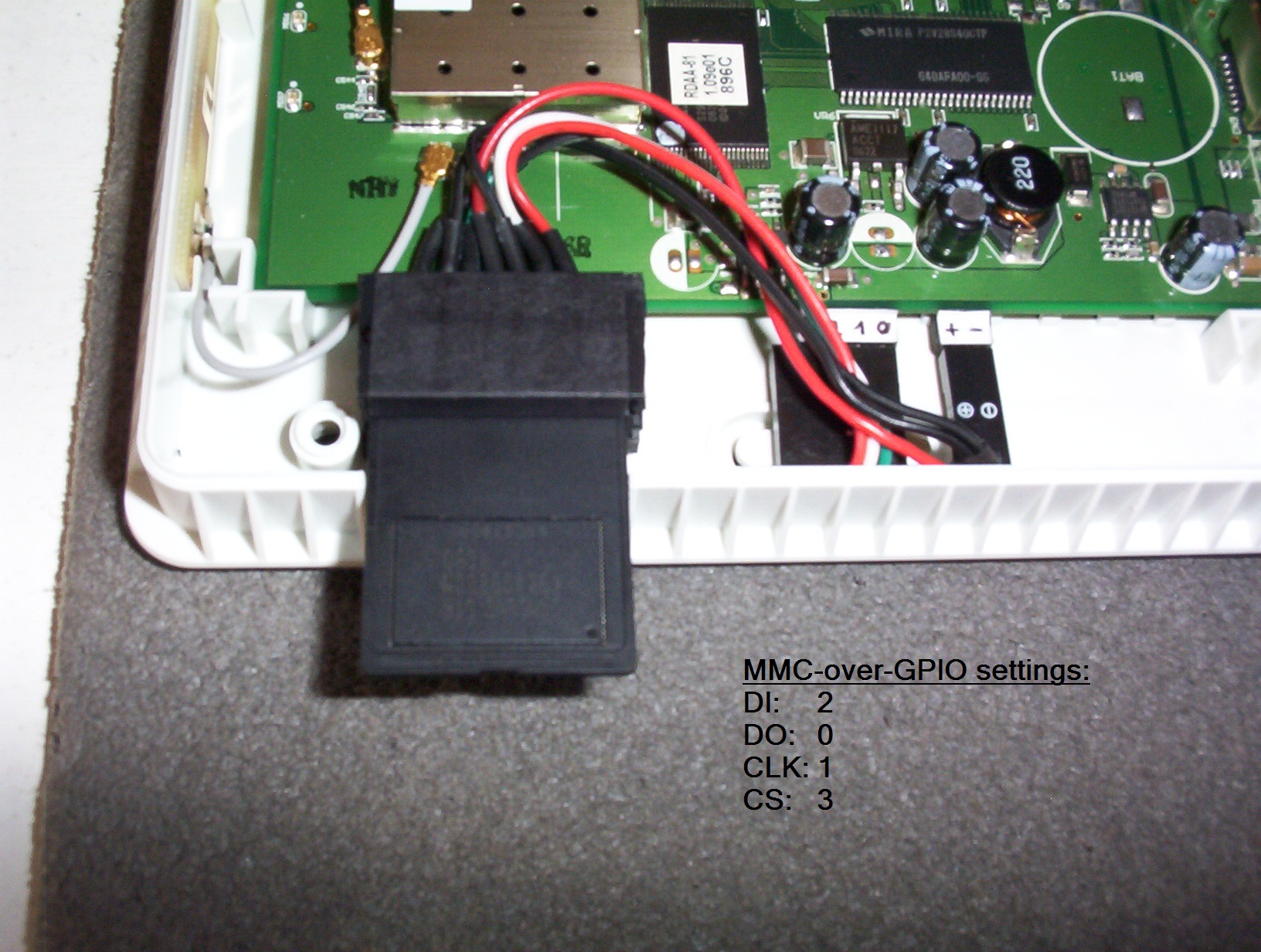

rdaa81_v1_mmc_over_gpio_mod_03.jpg2012-Jun-01 12:01:41576.3Kimage/jpeg

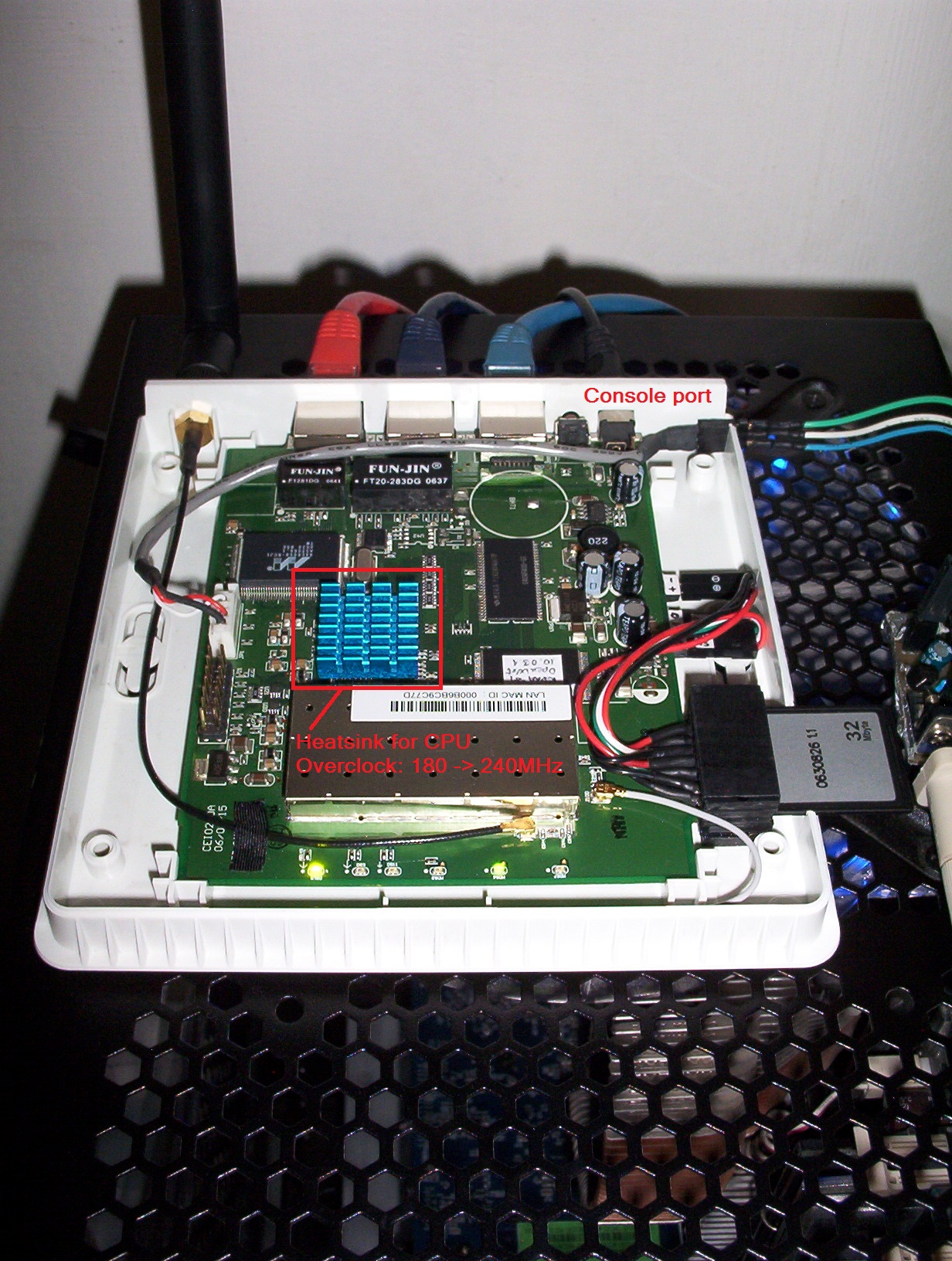

rdaa81_v2_mmc_and_console_mod_01.jpg2012-Jun-01 19:57:08645.7Kimage/jpeg

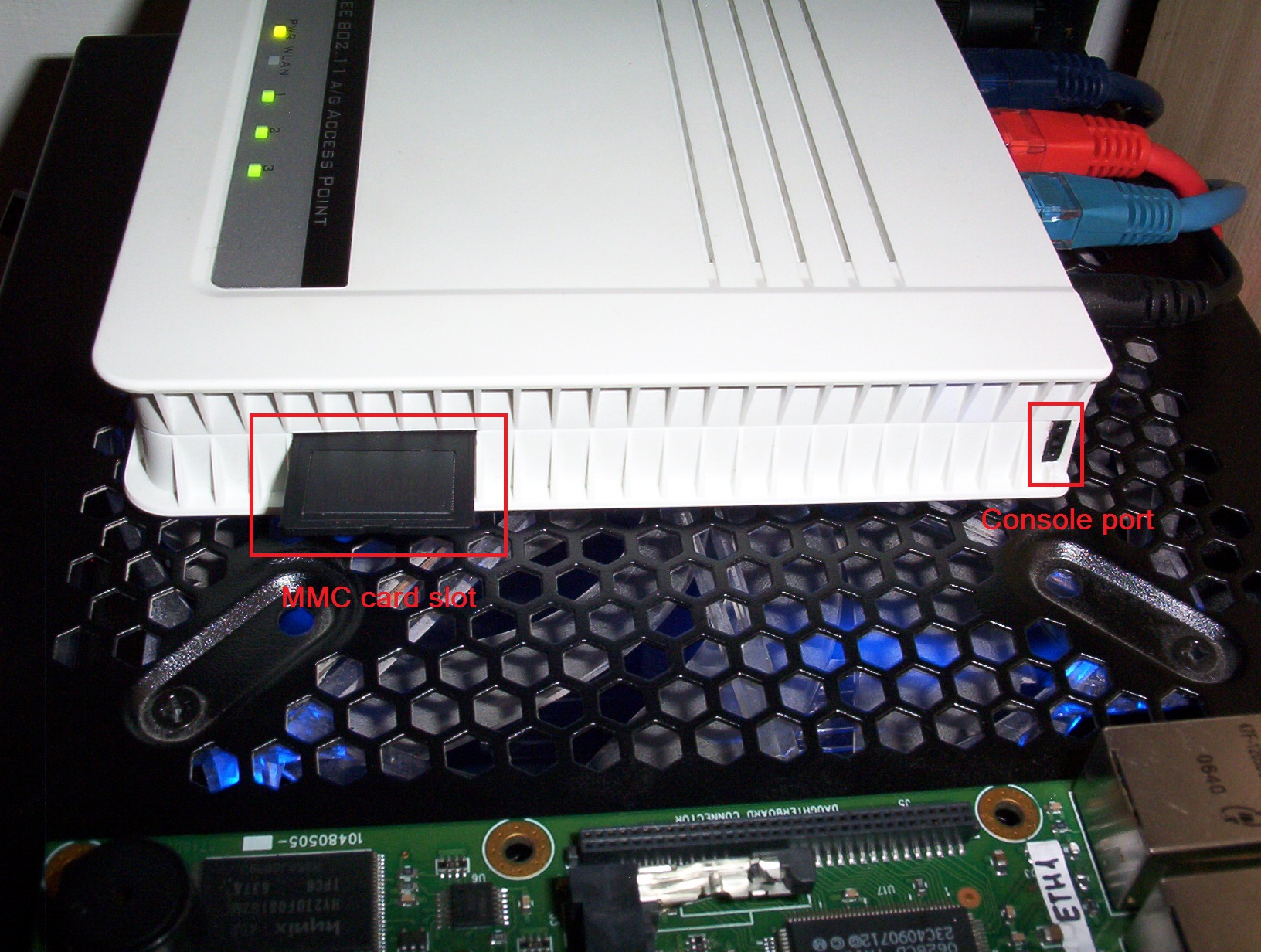

rdaa81_v2_mmc_and_console_mod_02.jpg2012-Jun-01 20:00:10596.8Kimage/jpeg

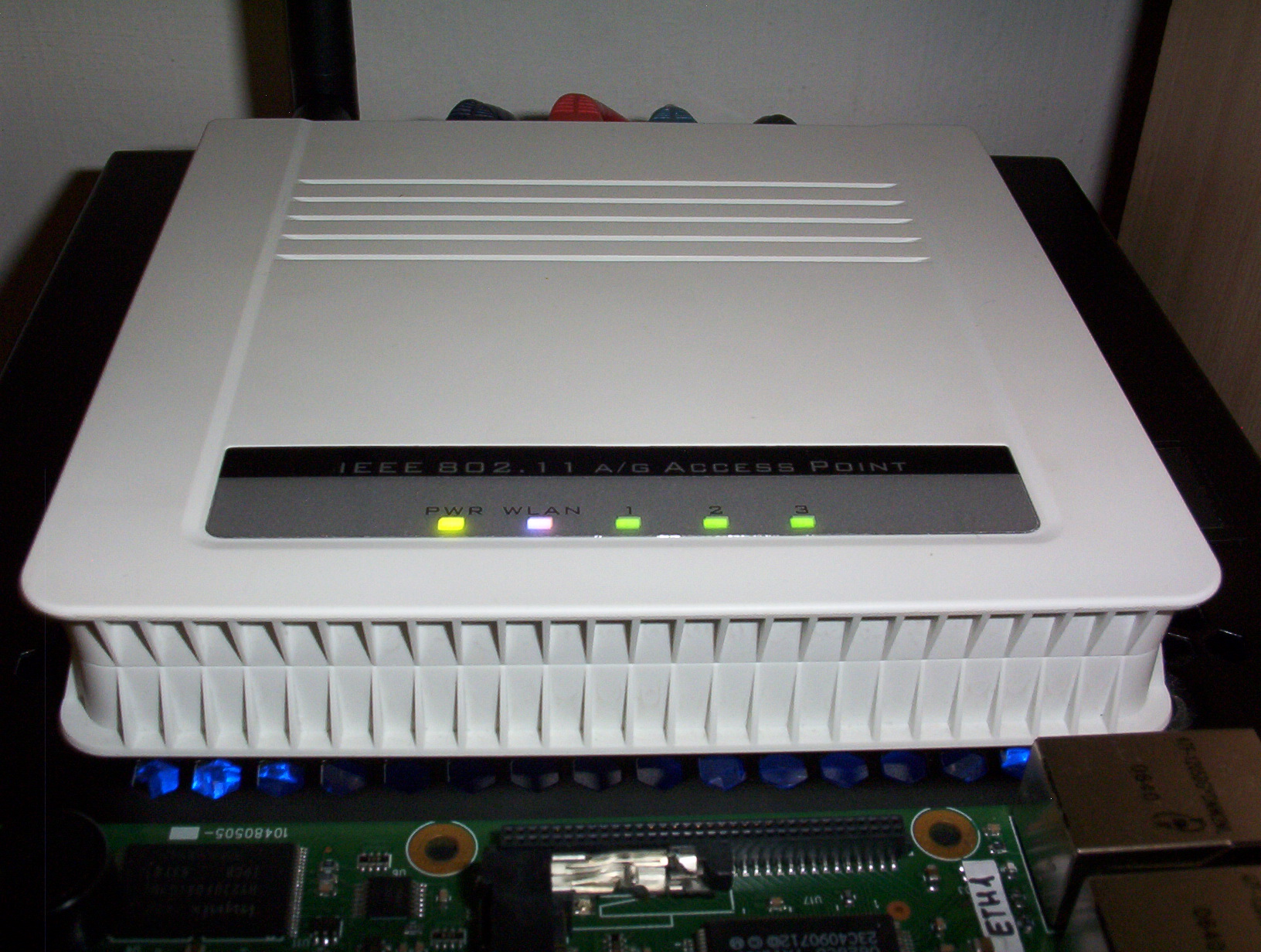

rdaa81_v2_mmc_and_console_mod_03.jpg2012-Jun-01 20:03:36675.8Kimage/jpeg
[ CA8 ]
AirCA8-based devices with zLoader (AR231x)

Supported devices:
- Ovislink AirLive WLA-5000AP (v2/v3) and Wistron CA8-4 (with 4MB flash only)
- Wistron RDAA-81 (CA8-PRO)

IMPORTANT WARNING:
These images are compatible with factory bootloader only!

============================================
Backfire 10.03.1, r29638 (stable) port fixes
============================================

- There is no JFFS2 release for devices (flash size is too small for the image).
- Fixed CA8 support patches for kernel: partitions (CA8_PRv2), interfaces (CA8_CRv2).
- Fixed Reset Button pin to GPIO #6. (It isn't working perfectly at cold start.)
- Added new 'viper' mtdpoint to physflash for easy bootloader upgrade. (DANGEROUS!!!)

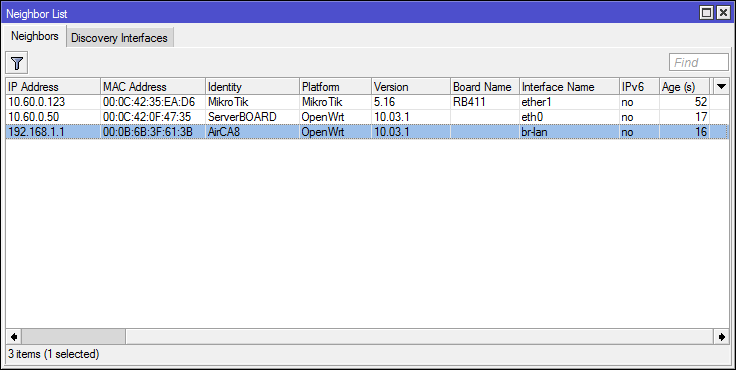

- CDP (Cisco Discovery Protocol) daemon and init.d script added to image.

---------------------------------
Specialized firmwares for RDAA-81
---------------------------------

[-OLD-] Standard (openwrt-standard-rdaa-81-squashfs.bin):
All Ethernet ports (1-3) are switched and assigned to LAN (eth0.1). There is no WAN support.

[-NEW-] LAN Router (openwrt-lanrouter-rdaa-81-squashfs.bin):
The 1st and 2nd Ethernet ports are assigned to LAN (eth0.1), but the 3rd port is hardcoded to WAN (eth0.2).

Build server: itsuki.dev.dtech.hu
Latest builds:
Standard: 2012-06-14, LAN Router: 2012-06-16.
